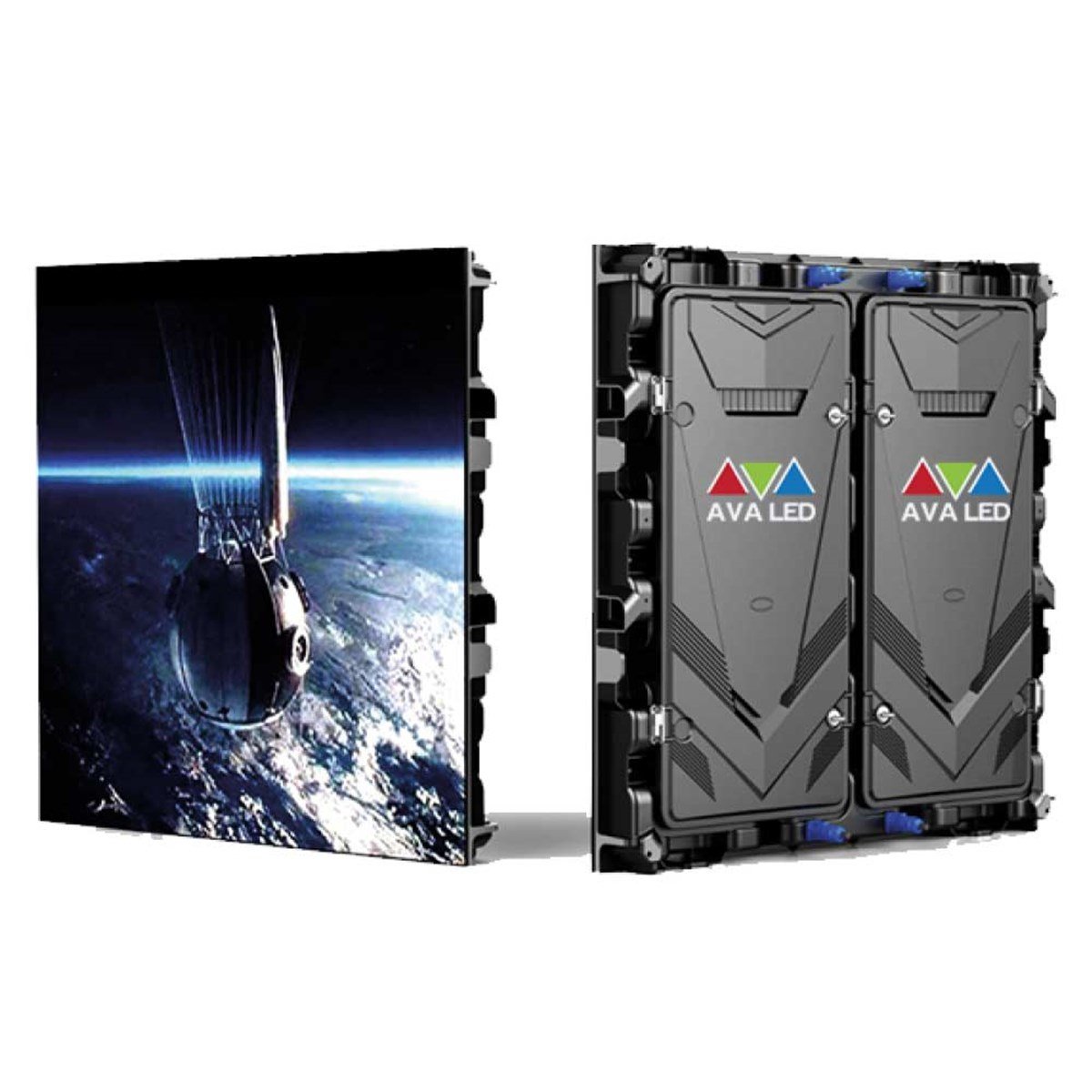

TN-OF-4 PRO, P4 Outdoor Led Screen (TNOF4PRO)

You have to login to see the prices.

Total Stock : 16
Stock Amount : 16
NATIONSTAR2 MEANWELL2 ICN2153 Novastar Seetronic 3840Hz SMD1921 6300nits



General Features:

  • Pixel Pitch : P4
  • High Refresh Rate : >3840Hz
  • High Brightness : >6300 Nits
  • Cabinet Size : 960mm x 960mm

Datasheet        User Manuel        Drawing         Drawing            Pictures                 Youtube

MODEL NAME Version
TN-OF-4
Features
:
Series
PRO
Panel installation type
Fix Instalation
Operating Environment
Outdoor
Pixel Pitch
P4
Brightness
>6300 Nits
Refresh Rate
>3840Hz
Front / Back Services
Back Services
Weight / m2
<28
Material Brands
:
Lamp
Class A
Entegred
Chipone or Smilar
Powersupply
Meanwell or Smilier
Controller
Novastar
Connectors : Seetronic
Seetronic
Module Specifications
:
Pixel Configuration
SMD1921
LED Chip
Cooper
Led
Black Shell
Module Size (mm)
320mm x 160mm
Module Resolution
80px x 40px
Processing
>14-16 Bit
PCB Quality
Best Quality
Module - Mask Quality
Normal Mask
Picture / Video Quality
High Quality
Grey Scale
>65536
Cabinet Specifications
:
Module Per Cabinet
18 Module
Cabinet Size (mm)
960mm x 960mm x 105mm
Cabinet Material
Die-Casting Magnesium
Weight Per Panel Net kg.
<25kg.
Cabinet Resolution
240px x 240px
Pixel Density / Cabinet
57600
IP Rating
Back IP54 / Front IP67
Others Specifications
:
Driving IC Type
PWM
Refrate Quality 2
High Refresh
No Waterless Ripple of Camera
>%75
Driving Method '' Scan ''
1/10 Scan
Resolution/SQM
250 x 250
Pixel Density / m2
62500
White Color Calibration (Adj.)
3.500K~8.500K
Horizontal Viewing Angle
140 (±30)
Vertical Viewing Angle
140 (±30)
Low Latency
NO
HDR
NO
Mapping
NO
Rotation per 90 Degree
Optional
Free Rotation (with R5)
Optional
Clear View
Optional
Refresh Quality
High Quality
High Refresh (PLL inside)
NO
High Refresh Power Saving
YES
High Refresh Dynamic Power Saving
NO
Expected LED Lifetime %50
>100.000 Hors
Operating Temperature Range
-15 – +45  (±10)
Operating Humidity Range
-40℃~+60℃,10%-90%RH (+-10)
Power on Time w/sqm
900W
Power Consumption (w/sqm)
780W
Average Power Consumption (w/sqm)
312W
Voltage Range
47 ~ 63Hz / 110 ~ 240 VAC
Version
REV22
Packing include
Plate-Power-Cat5 Standart Cable
Usage Area
Auditorium, Concert Area , Advertisement, Shopping Center, Scoreboard & Totem
Certificate
CE/EMC/LVD - ATR - EUR1 - ISO9001:2015 - ISO14001:2015
Accessories
