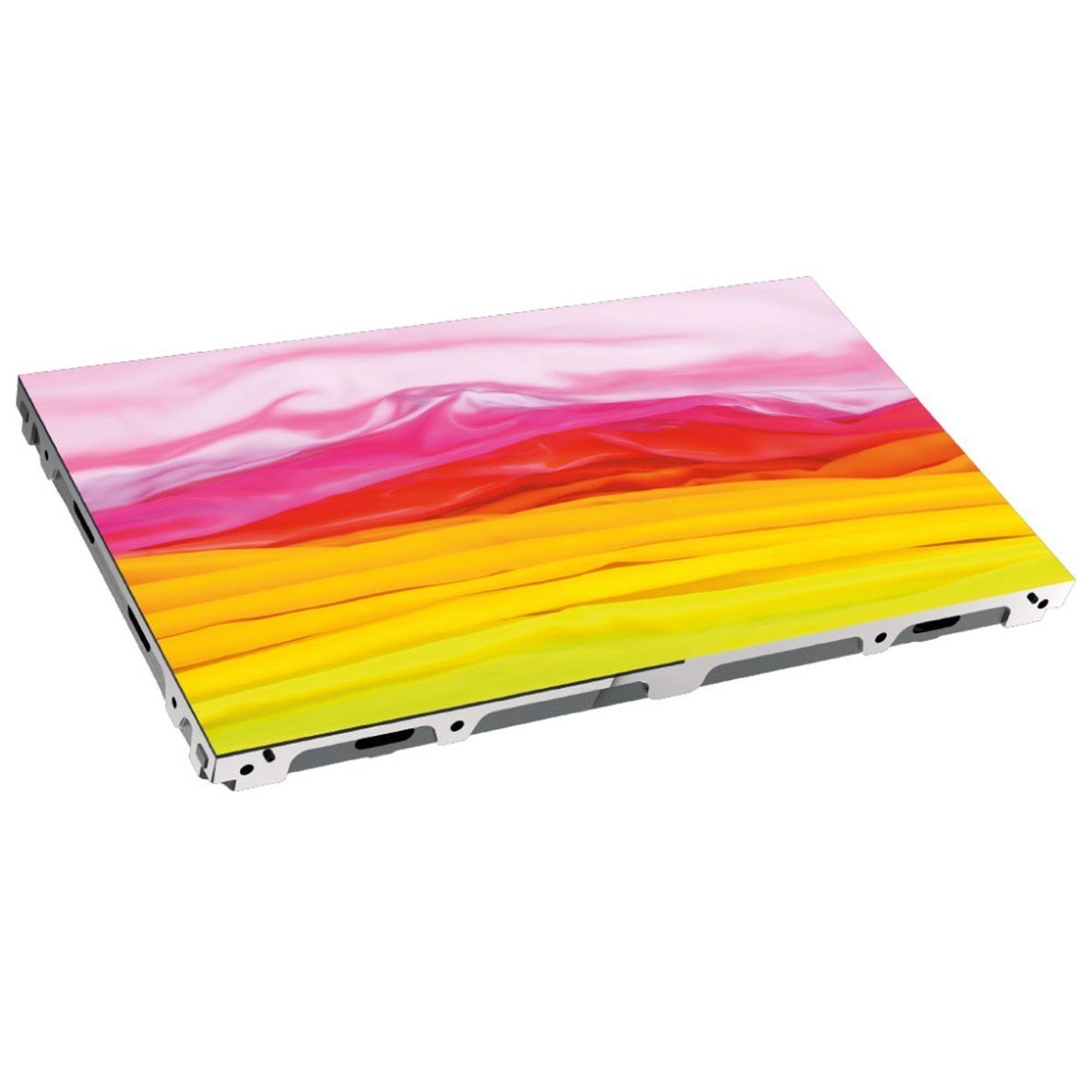

TN-PRO-IF-4 P4 Indoor Led Screen 640x480mm
TN-PRO-IF-4 P4 Indoor Led Screen 640x480mm
TN-PRO-IF-4 P4 Indoor Led Screen 640x480mm
TN-PRO-IF-4 P4 Indoor Led Screen 640x480mm
TN-PRO-IF-4 P4 Indoor Led Screen 640x480mm
TN-PRO-IF-4 P4 Indoor Led Screen 640x480mm
TN-PRO-IF-4 P4 Indoor Led Screen 640x480mm
TN-PRO-IF-4 P4 Indoor Led Screen 640x480mm
TN-PRO-IF-4 P4 Indoor Led Screen 640x480mm

TN-PRO-IF-3 , P3 Indoor Led Screen 640x480mm

You have to login to see the prices.

Total Stock : 0
Stock Amount : 0
NATIONSTAR2 MEANWELL2 ICN2153 Novastar Seetronic 3840Hz SMD2020 1100nits



General Features:

  • Pixel Pitch : P3,07
  • High Refresh Rate : >3840Hz
  • High Brightness : >1100 Nits
  • Cabinet Size : 640mm x 480mm x 70mm
  • Operating Environment : Indoor
  • Panel installation type : Front Services
  • Usage Area : Fix Instalation

Datasheet           User Manuel          Drawing           Drawing              Pictures                 Youtube              Youtube            Youtube



MODEL NAME Version
TN-PRO-IF-3
Features
:
Series
PRO
Panel installation type
Fix Instalation
Operating Environment
Indoor
Pixel Pitch
P3,07
Brightness
>1100 Nits
Refresh Rate
>3840Hz
Front / Back Services
Front Services
Weight / m2
<21
Material Brands
:
Lamp
Class A
Entegred
Chipone or Smilar
Powersupply
Meanwell or Smilier
Controller
Novastar
Connectors : Seetronic
Seetronic
Module Specifications
:
Pixel Configuration
SMD2020
LED Chip
Cooper
Led
Space Black
Module Size (mm)
320mm x 160mm
Module Resolution
104px x 52px
Processing
>14-16 Bit
PCB Quality
Best Quality
Module - Mask Quality
Normal Mask
Picture / Video Quality
High Quality
Grey Scale
>65536
Cabinet Specifications
:
Module Per Cabinet
6 Module
Cabinet Size (mm)
640mm x 480mm x 70mm
Cabinet Material
Die-Casting Magnesium
Weight Per Panel Net kg.
<6,5kg.
Cabinet Resolution
208px x 156px
Pixel Density / Cabinet
32448
IP Rating
IP40
Others Specifications
:
Driving IC Type
PWM
Refrate Quality 2
High Refresh
No Waterless Ripple of Camera
>%75
Driving Method '' Scan ''
1/26 Scan
Resolution/SQM
325 x 325
Pixel Density / m2
105625
White Color Calibration (Adj.)
3.500K~8.500K
Horizontal Viewing Angle
140 (±30)
Vertical Viewing Angle
140 (±30)
Low Latency
NO
HDR
NO
Mapping
YES
Rotation per 90 Degree
YES
Free Rotation (with R5)
Optional
Clear View
Optional
Refresh Quality
High Quality
High Refresh (PLL inside)
NO
High Refresh Power Saving
YES
High Refresh Dynamic Power Saving
NO
Expected LED Lifetime %50
>100.000 Hors
Operating Temperature Range
-15 – +45  (±10)
Operating Humidity Range
-40℃~+60℃,10%-90%RH (+-10)
Power on Time w/sqm
600W
Power Consumption (w/sqm)
460W
Average Power Consumption (w/sqm)
138W
Voltage Range
47 ~ 63Hz / 110 ~ 240 VAC
Version
REV22
Packing include
Plate-Power-Cat5 Standart Cable
Usage Area
Studio, Advertisement, Auditorium, Conference & Concert Hall
Certificate
CE/EMC/LVD - ATR - EUR1 - ISO9001:2015 - ISO14001:2015
