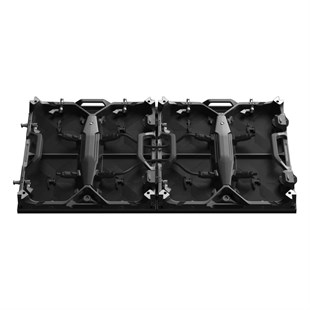

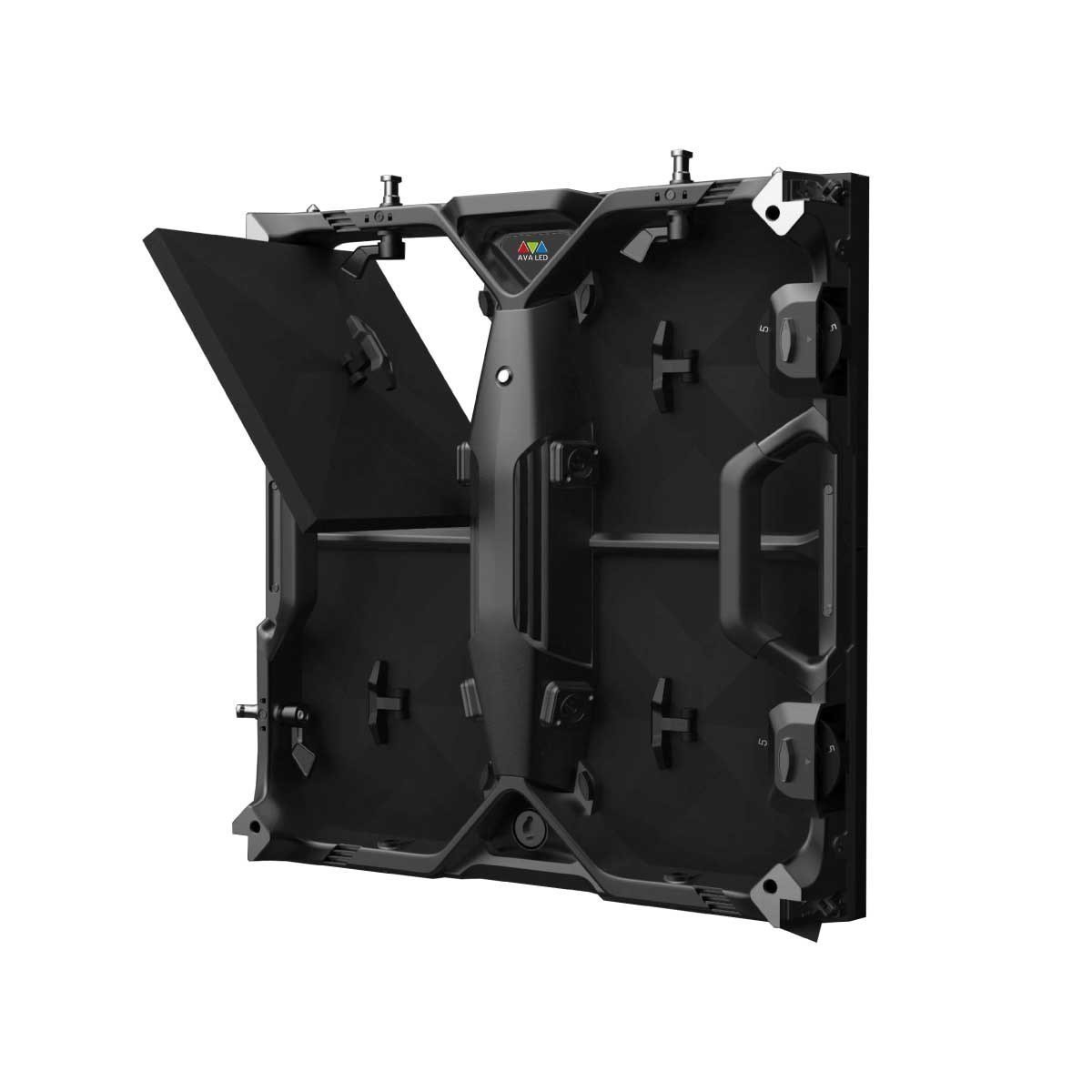

Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen
Eilte Series CR-OR-3 P3,91 500x500 Outdoor led Screen

Elite Series CR-IR-2 Plus, P2,6 500x500 Indoor led Screen

You have to login to see the prices.

Total Stock : 240
Stock Amount : 240
NATIONSTAR2 MEANWELL2 ICN2055 Novastar Seetronic 3840Hz SMD1515 1000nits



General Features:

  • Pixel Pitch : P2,6 Indoor
  • High Refresh Rate : >3840Hz
  • High Brightness : >1000 Nits
  • Cabinet Size : 500mm x 500mm x 80mm

Datasheet              User Manuel        Drawing              Pictures            Drawing      Youtube 1             Youtube 2               Youtube 3        Youtube 4

MODEL NAME Version
CR-IR-2
Features
:
Series
PLUS
Panel installation type
Rental
Operating Environment
Indoor
Pixel Pitch
P2,6
Brightness
>1000 Nits
Refresh Rate
>3840Hz
Front / Back Services
Front Services
Weight / m2
<28
Material Brands
:
Lamp
Class A
Entegred
Chipone or Smilar
Powersupply
Meanwell or Smilier
Controller
Novastar
Connectors : Seetronic
Seetronic
Module Specifications
:
Pixel Configuration
SMD1515
LED Chip
Cooper
Led
Space Black
Module Size (mm)
250mm x 250mm
Module Resolution
96px x 96px
Processing
>14-18 Bit
PCB Quality
Best Quality
Module - Mask Quality
Normal Mask
Picture / Video Quality
Best Quality
Grey Scale
>262144
Cabinet Specifications
:
Module Per Cabinet
4 Module
Cabinet Size (mm)
500mm x 1000mm x 85mm
Cabinet Material
Die-Casting Magnesium
Weight Per Panel Net kg.
<7kg.
Cabinet Resolution
192px x 192px
Pixel Density / Cabinet
36864
IP Rating
IP40
Others Specifications
:
Driving IC Type
PWM
Refrate Quality 2
Highend Refresh Rate
No Waterless Ripple of Camera
>%90
Driving Method '' Scan ''
1/26 Scan
Resolution/SQM
384 x 384
Pixel Density / m2
147456
White Color Calibration (Adj.)
3.500K~8.500K
Horizontal Viewing Angle
140 (±30)
Vertical Viewing Angle
140 (±30)
Low Latency
YES
HDR
YES
Mapping
YES
Rotation per 90 Degree
YES
Free Rotation (with R5)
YES
Clear View
YES
Refresh Quality
Best Quality
High Refresh (PLL inside)
YES
High Refresh Power Saving
YES
High Refresh Dynamic Power Saving
YES
Expected LED Lifetime %50
>100.000 Hors
Operating Temperature Range
-15 – +45  (±10)
Operating Humidity Range
-40℃~+60℃,10%-90%RH (+-10)
Power on Time w/sqm
800W
Power Consumption (w/sqm)
540W
Average Power Consumption (w/sqm)
189W
Voltage Range
47 ~ 63Hz / 110 ~ 240 VAC
Version
REV22
Packing include
Plate-Power-Cat5 Standart Cable
Usage Area
Rental Screen Studio, Confrence, Meeting Room & TV Studio, Advertisement, Auditorium, Conference & Concert Hall Small Pixel Advertisement, Shopping Center & Totem
Certificate
CE/EMC/LVD - ATR - EUR1 - ISO9001:2015 - ISO14001:2015
